2027 Scott Spark RC Updated with new hidden Suspension Layout

Scott Reimagines Cross-Country Design with Next-Gen Spark RC

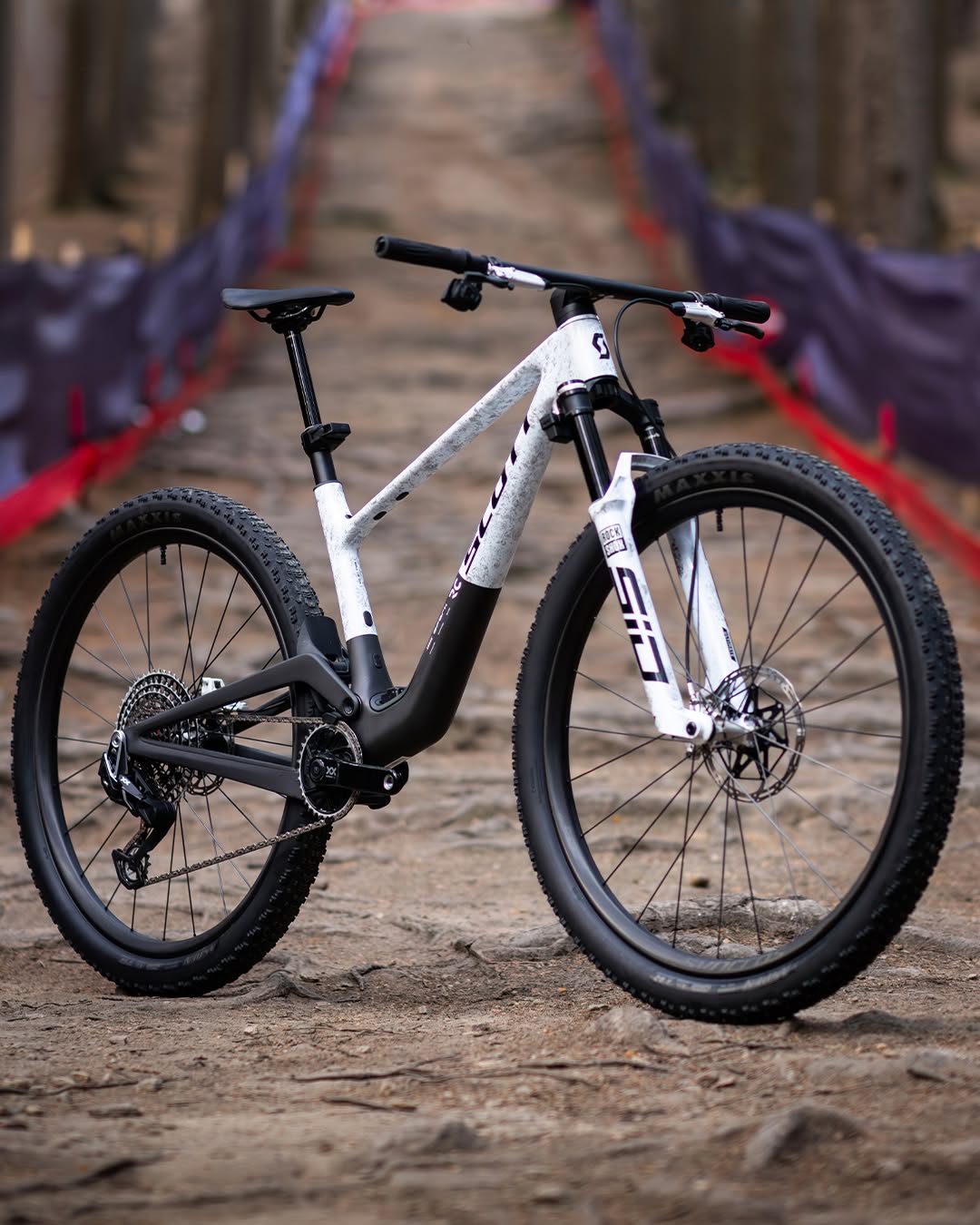

Scott has officially unveiled the latest generation of its iconic Spark RC, shifting its cross-country design philosophy to focus on a strategic balance of traction, composure, and control over outright frame stiffness. While retaining 120mm of front and rear travel, the high-performance race machine introduces a radically redesigned chassis alongside updated geometry and integrated utilitarian features.

A Radical Horizontal Suspension Layout

The most defining update to the new Spark RC is its inverted flex-pivot suspension layout. Moving away from the previous orientation, Scott has rotated the rear shock to sit horizontally inside the downtube.

The mechanism drives the shock via a unique driving link that pivots directly around the bottom bracket. This rocker link is split into two separate pieces that hook into massive frame bearings, tied together by the shock bolt and rear triangle, allowing the layout to rotate completely independently of the crank spindle.

By concentrating suspension forces around the bottom bracket, an area that naturally requires heavy reinforcement for pedaling stiffness, Scott eliminated the need to reinforce the top tube and seat tube. This structural optimization sheds significant weight while lowering the bike’s center of gravity for improved stability under braking and nimbler side-to-side handling.

While the rear shock remains completely hidden and protected from dirt, it features vastly improved accessibility. The chassis utilizes a “shock tunnel” design with removable front and rear plastic covers secured by clean, magnetic pop-in latches.

• The front cover opens up to internal downtube storage designed for Scott’s “save the day kit” (tube, pump, and tyre levers), alongside a dedicated multi-tool.

• The rear cover grants swift access to the rear shock bolt and a max-travel indicator, which pairs with an external sag meter built into the bottom bracket pivot.

Furthermore, the straight, uninterrupted seat tube allows full insertion depth for long-travel droppers—fitting 150mm posts on all frame sizes and up to 200mm on larger variants. Frame updates also clearance for wider 2.6-inch tyres.

Slacker Geometry and Weight Reductions

Scott has pushed the boundaries of modern XC geometry. The Spark RC is now one of the slackest bikes in its category, offering an adjustable head angle ranging from 65.4° to 66.4° via adjustable headset cups. To maintain an aggressive racing stance, it utilizes ultra-low stack heights starting at 591mm, combined with compact 434mm chainstays across all sizes.

Despite adding utilitarian elements like internal storage, Scott managed to drop 200 grams compared to the previous model. The top-tier HMX-SL frame weighs just 1,427g (medium, without shock), helping full builds start at a competitive 9.9 kg (21.83 lbs).

Models and Availability

Scott is offering eight distinct models built on three carbon layup tiers (HMX-SL, HMX, and HMF). High-end specifications include seamless integration with RockShox Flight Attendant electronic suspension and SRAM AXS transmissions, while mechanical builds feature Scott’s proprietary TwinLoc system.

Pricing ranges from $4,499.99 (£3,499 / €3,699) for the entry-level Spark RC Comp, up to $14,999.99 (£12,799 / €12,999) for the flagship Spark RC SL.

2027 Scott Spark RC Tech Specs

News Source: Scott Sports
