Shimano Defies Wireless Trend with New Mechanical Deore XT M8200 Groupset

The mechanical Shimano Deore XT M8200 has been released, with its new Shadow ES architecture and refined 12-speed shifting.

Following hot on the heels of its budget-friendly Deore update, Shimano has officially unveiled a mechanical, cable-actuated refresh for its high-end Deore XT tier. Dubbed the M8200 series, this launch makes one thing clear: Shimano isn’t ready to abandon high-performance mechanical shifting in a world increasingly dominated by wireless batteries. Instead, the Japanese component giant has adapted the rugged durability and design architecture of last year’s electronic XT Di2 launch and built it into a reliable, battery-free package.

The newly focused release zeroes in on the rear derailleur and shifter mechanics, utilizing existing cassettes, chains, and cranks from the recent Di2 ecosystem to complete the groupset.

Shadow ES Takes Center Stage

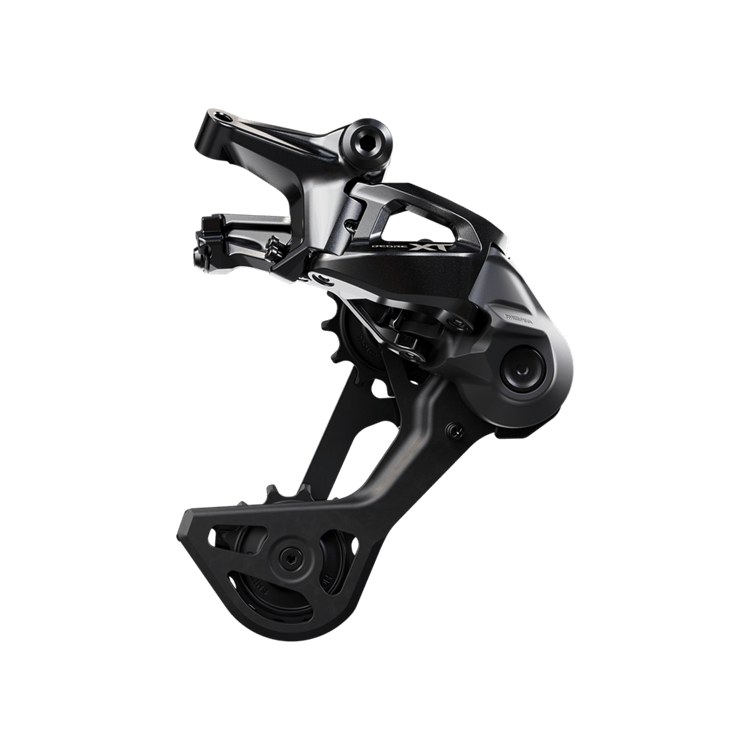

The absolute headline of the new M8200 groupset is the debut of Shimano’s “Shadow ES” rear derailleur architecture. Moving away from the traditional, adjustable Shadow+ friction clutch system, Shadow ES implements a completely redesigned wedge-shaped, low-profile body. This structural shift effectively tucks the derailleur further under the frame to dramatically reduce front-facing surface area, protecting it from rocks and trail debris.

Rather than a friction clutch, chain stabilization is handled by a robust dual-spring design that boosts spring force by 70%. While trail testing notes that this spring configuration can result in slightly more noise and chain flail compared to a clutched variant, the trade-off is massive for riders prioritizing longevity: a spring system won’t degrade over time from mud, grit, or heavy use.

Shimano is rolling out three distinct derailleurs, each priced at $170 / €119:

• RD-M8200-SGS (Long Cage): Built for standard 12-speed Hyperglide+ setups, pairing seamlessly with a wide-range 10-51t cassette. It carries a claimed weight of 370 grams.

• RD-M8200-GS (Mid-Cage): A highly anticipated addition to the mechanical lineup, this shorter-cage option mates with a tighter 9-45t cassette. It optimizes ground clearance and shaves weight where it matters most.

• RD-M8230 (Linkglide): An 11-speed option designed for an 11-50t cassette, targeted directly at heavy-duty riders prioritizing ultra-smooth shifts and maximum drivetrain life.

Refined Shifting at the Bars

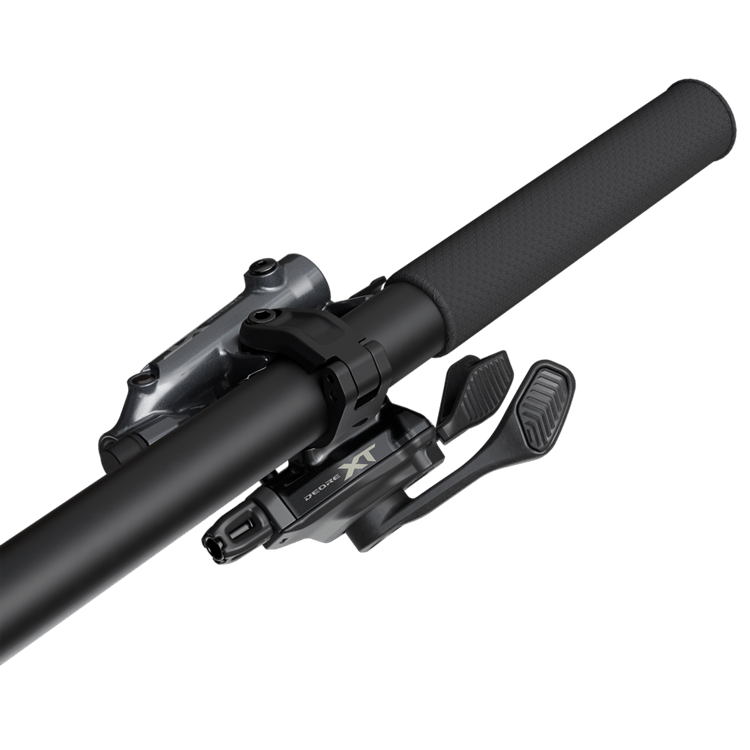

To complement the new derailleurs, Shimano overhauled its mechanical shifters, prioritizing ergonomics and tactile feedback. The new designs feature a shorter lever stroke, a sharper actuation, a firmer secondary click, and a rearranged paddle position for an improved thumb feel.

Crucially for mechanical purists, the shifters retain Shimano’s “2-Way Release” capability. Allowing riders to downshift by either pushing or pulling the lever. A functional favorite that was notably missing on the electronic Di2 shifters.

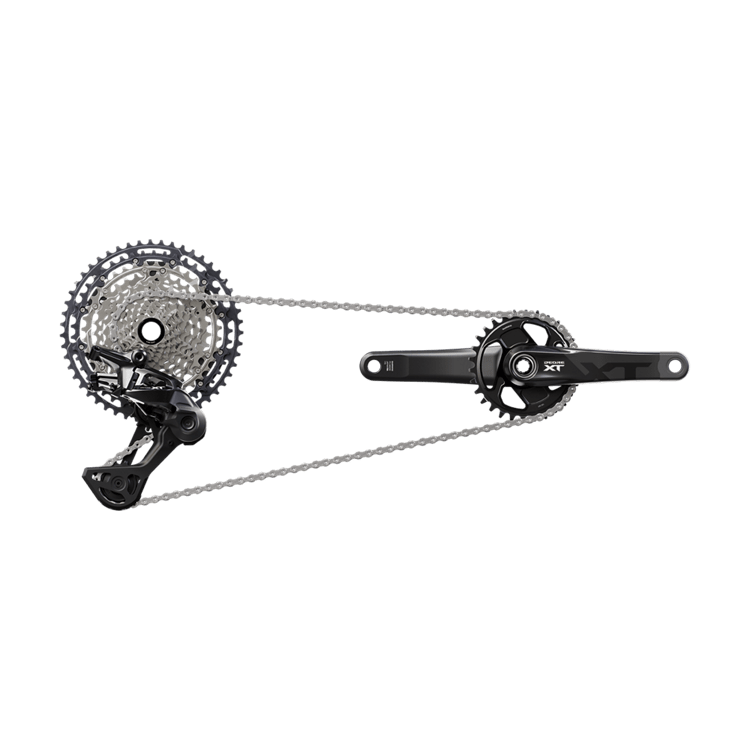

Shimano Deore XT M8200 Mechanical Drivetrain

Three variants are available at $85 / €65 each, offered in both integrated I-SPEC EV and standard handlebar clamp configurations:

• SL-M8200: The standard 12-speed Hyperglide+ version, capable of multi-shifting up to three gears at once.

• SL-M8210: A specialized 12-speed option optimized for high-torque eMTBs that restricts shifting to a single click at a time, protecting the cassette from under-load damage.

• SL-M8230: The 11-speed multi-shift companion tailored specifically for the Linkglide ecosystem.

The M8200 series positions itself as a premium choice for riders seeking top-tier trail performance without a charging port.

News Source: Pink Bike
