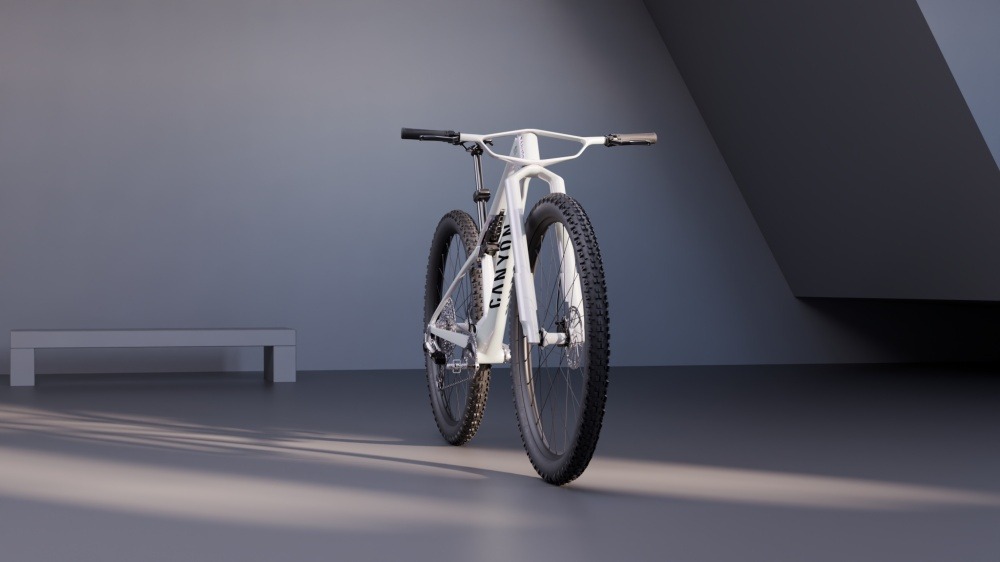

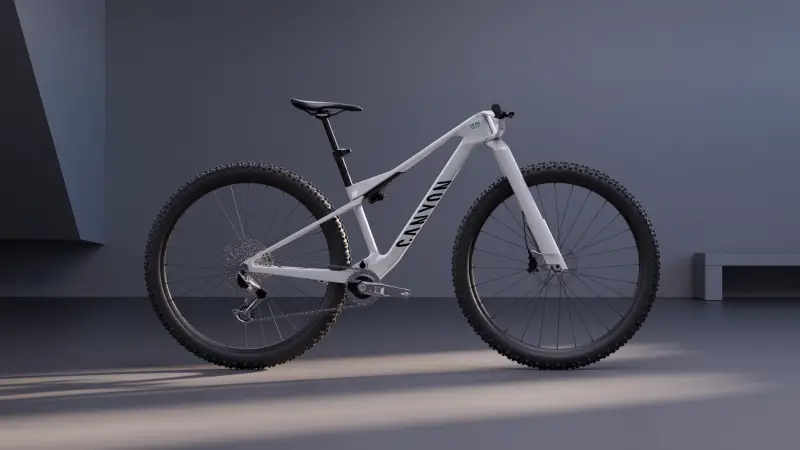

On the heels of the historic first World Cup showing for 32-inch wheels, Canyon has officially pulled back the curtain on its next-generation cross-country (XC) race concept: the Lux Era. Featuring massive 32-inch wheels, an inverted suspension fork, and a futuristic “bi-plane” cockpit, the prototype signals a massive industry pivot away from pure weight-saving toward momentum and aerodynamics.
Image Source: Canyon The Rise of the ’32er’
The mountain bike world is currently processing a sudden shift in wheel size philosophy. For years, 29-inch wheels have been the undisputed standard for cross-country racing. However, the arrival of 32-inch “wagon wheels” has transitioned from internet whispers to real-world podiums.
Just last weekend at the World Cup in Lenzerheide, Switzerland, Swiss rider Alessandra Keller piloted a 32-inch prototype to a third-place finish in the XCC short track race—marking the first-ever World Cup podium for the wheel size.
While real-world results remain early and mixed (Keller placed 19th in the full Olympic distance XCO race, and teammate Mathias Flückiger struggled to a disappointing 32nd finish), Canyon is leaning heavily into the larger format. The engineering logic is straightforward:
Better Traction: A larger wheel naturally creates a bigger tire contact patch with the dirt.
Increased Momentum: Once moving, the larger wheels carry speed more efficiently over rough terrain.
Smoother Ride: The wider diameter rolls over obstacles easily, offering superior stability.
A Shift Toward Aerodynamics
As XC race courses have grown more technically demanding over the last decade, they have also grown significantly faster. According to data released by Canyon, average XCO World Cup speeds have climbed 33% over the past ten years—jumping from 18 km/h in 2016 to roughly 24 km/h today.
At these speeds, wind resistance becomes a genuine factor for the first time in mountain bike history. Because the rider accounts for roughly 70% of total aerodynamic drag, Canyon designed the Lux Era specifically to help athletes tuck into a lower profile.
XC World Cup Average Speeds (2016 vs. Present) 2016: ██████████████████ 18 km/h Present: ████████████████████████ 24 km/h (+33%)The most striking feature of this aero-focus is the “bi-plane” handlebar system. Reminiscent of the double-decker bars found on Canyon’s previous-generation Grail gravel bikes, the unique design offers multiple hand positions. This allows riders to safely drop into a highly aerodynamic position on fast fire-road sections while maintaining steering control.
To further reduce drag, Canyon has integrated the bike computer directly into the top cap of the fork steerer tube, smoothing out the front profile of the bike.
Inverted Forks and Future Integration
Because market availability for 32-inch suspension forks is currently non-existent, Canyon chose an inverted (upside-down) fork design. However, the brand claims this move offers distinct performance benefits beyond solving a sourcing issue.
Integrating a narrow crown structure allows the fork to use aerodynamic fairings to cut through the air. Performance-wise, Canyon notes that the upside-down configuration provides superior fore/aft rigidity, improved stability under heavy braking, sharper handling, and a reduction in unsprung mass.
When Will It Hit the Dirt?
For riders looking to open their wallets, a dose of reality: the Lux Era is strictly a concept prototype. Canyon notes that the bike has not yet been submitted to the cycling governing body (the UCI) for race approval, meaning top athletes like Jenny Rissveds will remain on standard 29-inch platforms for the immediate future.
The bike is currently undergoing rigorous wind tunnel and athlete testing, and Canyon intends to display the radical machine at the Eurobike trade show this week. Whether 32-inch wheels ultimately rewrite the rulebook or remain a niche design exercise, the Lux Era proves the industry is officially taking the mega-wheel era seriously.
